Hot Rod Jim’s truck came to us like most cars, old and in need of some TLC. With our regular shop truck on the frits we decided this truck needed to be a purpose built car to look good, sit low, get good gas mileage, be comfortable, able to pull a fully loaded trailer and run circles around any other truck out there. So the list is made and so we started the same way we always do, scrap the frame and everything under the car. 1957 technology was fine back in 57 but today’s roads require a different type of car, to keep up, be safe and not break the bank. We wanted a good handling sport truck so we started with the C4 corvette suspension as our platform and went from there. The next two problems we killed with one stone, sit low and still support a trailer on the back, the answer was simple, Air Ride. Our power plant then came from a ¾ ton box truck with the GM LQ4 6.0 and 4L80E transmission. These two would provide us with unparallel power, a reliable heavy duty transmission and good gas mileage for the right price. Some C6 Z06 Corvette brakes to help slow the monster down and matching rims and tires for neck breaking grip. We’ll be topping the truck off with a classic hot rod touch of flat black, red and white pin striping and Hot Rod Jim’s logo brushed on the side just like the good old days. See the complete list for all the details.
| Click to Enlarge |

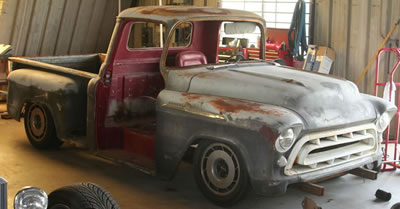

| In the beginning |
| |
 |
|
 |
| 57 on Chassis V 1.0 |
| |
 |
|
 |
| |
| |
 |
|
 |
| |
| |
 |
|
 |
| |
| |
 |
|
 |
| |
| |
 |
|
 |

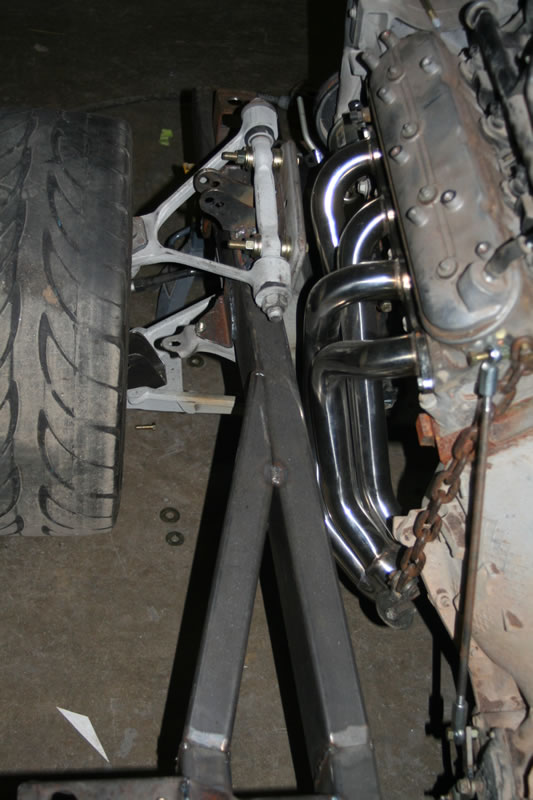

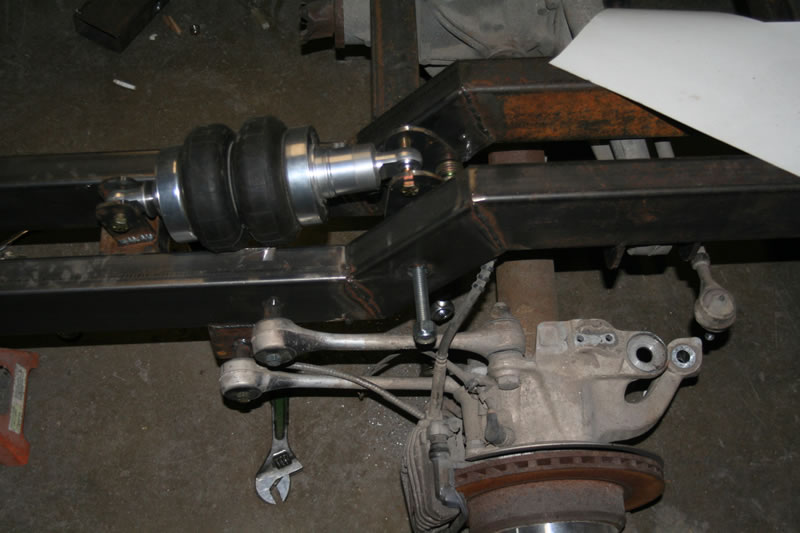

| 57 Chassis V2 |
| |
 |
|
 |
| |
- Chassis
Hot Rod Jim’s C4 Basic Rolling Chassis
2 Turn Power Rack and Pinion
All Urethane Bushings
NO SWAY BARS front or back
Dana 36 Rear Differential
3.09 Gears
Stock Limited Slip Clutch Pack
C6 Z06 Corvette Brake Upgrade
Six Piston Front Calipers
14” Front Drilled Rotors
Four piston Rears
13.4” Rear Drilled Rotors
18”x8.5 Front Rims with 235/40/R18
18”x8.5 Rear Rims with 245/40/R18
Air Ride
Front V3 Shockwaves 4.1” stroke
Rear V3 Shockwaves 5.0” stroke
Remote levering system, 2-3 ratio
Level Ride 4000 Handling System
-Motor Transmission
LQ4 04 Chevy ¾ Ton Truck
4L80E Automatic Transmission
Stainless Long Tube headers
Full 2.5” Dual Exhaust
Cheery Bomb Glass Packs
Steel 3” Driveshaft
-Exterior
Flat Black with White Accents
Red and White Pin Striping
Hot Rod Jim Logo on both doors
|
